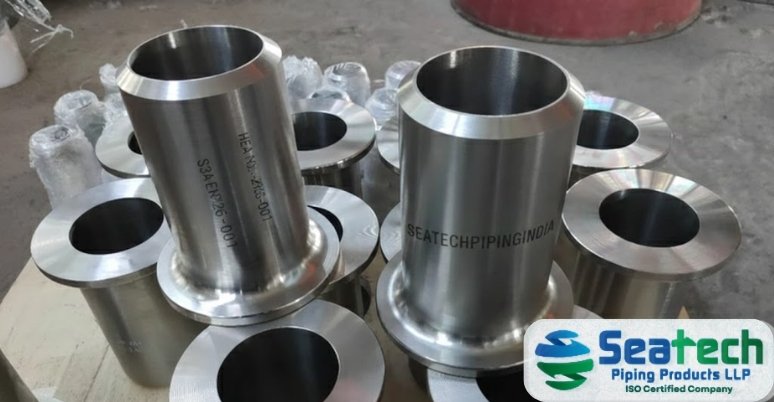

Stub End Manufacture in India

Long Neck Stub End Supplier, Long Pattern Stub End Stockist, Lap Joint Stub End Weight, Welded Stub End Price, Stub End Manufacturer in India

Seatech Piping Products LLP is a prominent Stub End Manufacturer in India, manufacturing Buttweld Stub End with a high level of industrial standards. We supply these Stub End Pipe Fittings in standard and custom size (1 inch to 48 inches and final lengths depending on the need of usage) to get the perfect fit of various piping sizes using high-quality designs of Lap Joint Stub End. We have developed superior manufacturing capabilities that allow us to supply Short Stub End, Long Stub End, and Lap Joint Stub End fittings that are used in high-performance applications.

Stainless Steel Stub End Pipe Fittings, Super Duplex Steel Stub End Pipe Fittings, Duplex Steel Stub End Pipe Fittings, Hastelloy Stub End Pipe Fittings, Inconel Stub End Pipe Fittings, Monel Stub End Pipe Fittings, Stub End Supplier in India

Seatech Piping Products LLP is an established ASTM A403 Stub End Pipe Fittings Manufacturer & Supplier in India. Every Hastelloy Stub End Pipe Fittings features high strength and accuracy in dimensions, utilizing advanced cold and hot roll processes. We have high-quality Stainless Steel Stub End Pipe Fitting that are extensively used in such critical application fields as marine Engineering, Desalination Plants, Offshore Piping, and Chemical Processing industries. We are also leading Long Radius Bend Manufacturer in India.

Specification Of Stub End Fittings

Stub End Specification
Standards ASTM A403 / B366 / A420
Dimension Standard ASME/ANSI B16.9 & MSSP-43.
Standard ANSI, ASME, BS, DIN, EN etc.
Size 1/2” NB TO 24” NB
Thickness Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
Grade
Stainless Steel ASTM 304, 304L, 310s, 316, 316L, 316ti, 317, 317L, 321, 904L .
Duplex & Super Duplex Steel ASTM / ASME SA 815 UNS NO.S 31803, S 32205, S 32550, S 32750, S 32760.
Hastelloy Hastelloy C22 / UNS N06022, Hastelloy C276 / UNS N10276, Hastelloy B2 / UNS N10665, Hastelloy B3 / UNS N10675
Inconel Inconel 600 / UNS N06600, Inconel 601 / UNS N06601, Inconel 625 / UNS N06625, Inconel 718 / UNS N07718, Inconel 800 / UNS N08800, Inconel 825 / UNS N08825
Nickel Nickel 200 / UNS N02200, Nickel 201 / UNS N02201, Nickel 205 / UNS N02205
Monel Monel 400 / UNS N04400, Monel K500 / UNS N05500
Incoloy Incoloy 800H / UNS N08810, Incoloy 800HT / UNS N08811, Incoloy 825 / UNS N08825

Types Of Stub End Available

Get Free Quote

CTA Design

Contact Us For Quotation Now !

Figure

Why Choose Seatech Piping Product LLP For Stub End Pipe Fittings?

On-Time Delivery

Quality Products with Timely Delivery.

Quality Inspection

Advanced Technology For Quality Inspection.

ANSI B16.9 Stub End Dimension

NPS Outside diameter
of barrel
Length (F) Diameter (G) Radius (R)
Minimum Maximum Long
Pattern
Short
Pattern
1/2″ 20.5 22.8 76 51 35 3
3/4″ 25.9 28.1 76 51 43 3
2 1/2″ 72.2 75.3 152 64 105 8
3″ 88.1 91.3 152 64 127 10
3 1/2″ 100.8 104.0 152 76 140 10
4″ 113.5 116.7 152 76 157 11
5″ 140.5 144.3 203 76 186 11
6″ 167.5 171.3 203 89 216 13
8″ 218.3 222.1 203 102 270 13
1″ 32.6 35.0 102 51 51 3
1 1/4″ 41.4 43.6 102 51 64 5
1 1/2″ 47.5 49.9 102 51 74 6
2″ 59.5 62.4 152 64 92 8
10″ 272.3 277.2 254 127 324 13
12″ 323.1 328.0 254 152 381 13
14″ 354.8 359.9 305 152 413 13
16″ 405.6 411.0 305 152 470 13
18″ 456.0 462.0 305 152 533 13
20″ 507.0 514.0 305 152 584 13
22″ 558.0 565.0 305 152 641 13
24″ 609.0 616.0 305 152 692 13
Application Of Long Pattern Stub End

Application Of Long Pattern Stub End

  • Oil & Gas Industries
  • Valve And Pulp Industries
  • Refinary Industries
  • Heat Exchanger Industries
  • Paper & Pulp Industries

Packaging Of Welded Stub End

  • Customized Packaging
  • Wooden Crates or Boxes
  • Bundled Packaging
  • Steel Strapped Bundles
  • Plastic Wrap
  • Shrink Wrap
Packaging OfWelded Stub End
Stock Available For Stub End
Stainless Steel Buttweld Stub End SS 304 Butt Weld Stub Ends
Stainless Steel 310 Buttweld Stub End Duplex Steel Butt Weld Stub Ends
Super Duplex Steel Buttweld Stub End 254 SMO Butt Weld Stub End
ANSI B16.9 904L Buttweld Stub End Alloy Steel F5 Butt Weld Stub Ends
Alloy Steel Buttweld Stub End Alloy Steel F11 Buttweld Stub End
A403 Alloy Steel F22 Buttweld Stub Ends ANSI B16.9 Alloy Steel Butt Weld Stub End
Monel Buttweld Stub End Monel Buttweld Stub End
Stainless Steel Buttweld Stub End Hastelloy Buttweld Stub End
Monel Butt Weld Stub End B366 Inconel Buttweld Stub Ends
