SS Pipe Fittings, Stainless Steel Buttweld Pipe Fittings, SS Seamless Fittings, Stainless Steel Elbow Stockist,Stainless Steel Pipe Fittings, Stainless Steel Buttweld Fittings, Stainless Steel 90 Degree Elbow, Stainless Steel Seamless Pipe Fittings, Stainless Steel 45 Degree Elbow, SS Pipe Fittings Manufacturer In India

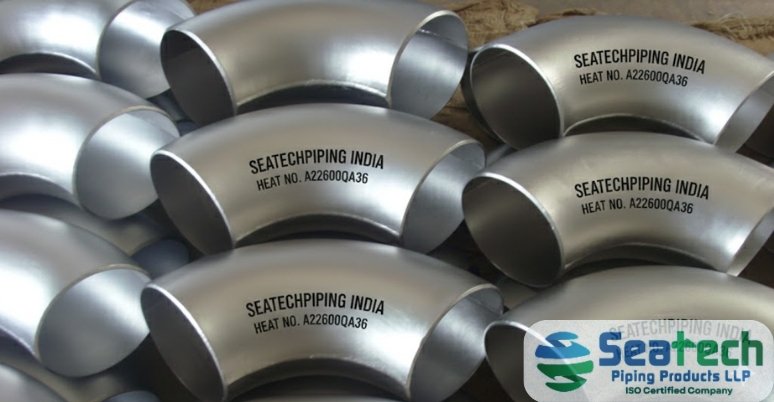

Seatech Piping Products LLP is a prominent Stainless Steel Pipe Fittings Manufacturer in India that manufactures high-quality Stainless Steel Buttweld Pipe Fittings, which are manufactured to the global industry standards and high-pressure usage. Our ANSI B16.9 SS Fittings, engineered under pressure, provide leak-free joints, such as the popular Stainless Steel 90 Degree Elbow, used in piping systems to create efficient, reliable piping. Our Stainless Steel Tube Fittings are made out of the following types of pipe fittings: stainless steel 304, 316, 904L, which supply durability, resistance to corrosion, and extended performance in most industries.
Stainless Steel Elbow Supplier, SS Pipe Fittings, Stainless Steel Reducer, Stainless Steel Buttweld Pipe Fittings, SS Pipe Fittings, Stainless Steel Short Radius Elbow, Stainless Steel Pipe Bend, Stainless Steel Welded Fittings, SS End Pipe Cap, SS Pipe Fittings Supplier In India
Seatech Piping Product LLP is a reliable Stainless Steel Pipe Fittings Manufacturer and Supplier in India, supplying Stainless Steel Short Radius Elbows to rigorous industrial requirements. Our SS Fittings are broadly applied in several industries, including oil and gas, process instrumentation, pulp and paper, sanitation, irrigation, power, municipal, petrochemical, marine and dredging, ventilation, residential, as well as road and highway construction, among others, thus ensuring reliable performance in harsh conditions. We also provide the Stainless Steel Pipe Bend that are of high quality, durable, do not corrode easily, and provide high flow management. We are also leading Duplex Steel Pipe Fittings Manufacturer in India.
| Stainless Steel Pipe Fittings | Specifications |
| Standards | ASTM A403 / ASME SA403 |
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Size | Seamless Butt Weld Fittings: 1/2" - 10" Welded Butt Weld Fittings: 1/2" - 48" |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Type | DN15-DN1200 |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom MSS Sp-43 Stainless Steel Pipe Fitting |
| Size Range | ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) |
| Elbows | Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D,
4D, 5D, 6D, 7D-40D. Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Specialized manufacturer of | 90 Deg Elbows, 45 Deg Elbows, Tees, Crosses, Reducers, Pipe Cap, Stub End, Pipe Bend |
Quality Products with Timely Delivery.
Advanced Technology For Quality Inspection.
| Grade | C | Mn | Si | P | S | Cr | Ni | Mo |
| 304 | 0.08 max | 2 max | 1 max | 0.045 max | 0.03 max | 18-20 | 8 – 11 | – |
| 304L | 0.04-0.1 | 2 max | 1 max | 0.045 max | 0.03 max | 18-20 | 8 – 11 | – |
| 310 | 0.25 max | 2 max | 1.5 max | 0.045 max | 0.03 max | 24-26 | 19-22 | – |
| 316 | 0.08 max | 2 max | 1 max | 0.045 max | 0.03 max | 16-18 | 11-14 | 2-3 |
| 316L | 0.035 max | 2 max | 1 max | 0.045 max | 0.03 max | 16-18 | 10-14 | 2-3 |
| 316Ti | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.03 max | 16-18 | 10-12 | 2-3 |
| 317 | 0.08 max | 2 max | 1 max | 0.045 max | 0.03 max | 18-20 | 11-14 | 3-4 |
| 317L | 0.035 max | 2 max | 1 max | 0.045 max | 0.03 max | 18-20 | 11-15 | 3-4 |
| 321 | 0.08 max | 2 max | 1 max | 0.045 max | 0.03 max | 17-19 | 9-12 | – |
| Grade | Tensile Strength | Yield Strength (0.2%Offset) | Elongation | Heat Treating Temperature, min or range (°C) |
| 304 | 515 min | 205 min | 28% | 1040 |
| 304L | 485 min | 170 min | 28% | 1040 |
| 310/310S | 515 min | 205 min | 28% | 1040 |
| 316 | 515 min | 205 min | 28% | 1040 |
| 316L | 485 min | 170 min | 28% | 1040 |
| 316Ti | 515 min | 205 min | 28% | 1040 |
| 317/317L | 515 min | 205 min | 28% | 1040 |
| 321 | 515 min | 205 min | 28% | 1040-1050 |
