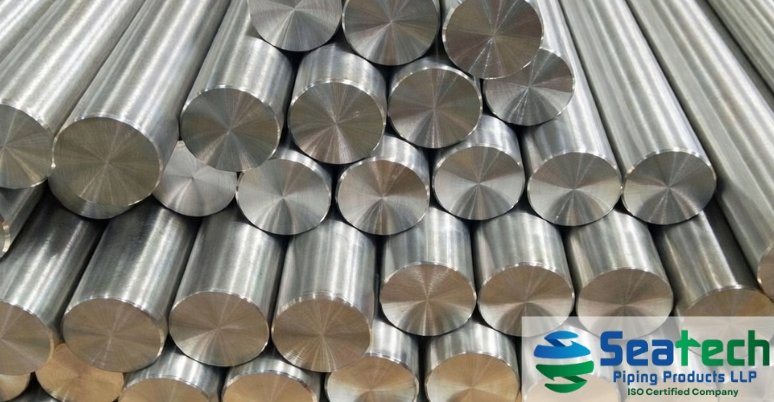

Stainless Steel 904L Round Bar Manufactuirer In India

Stainless Steel 904L Flat Bar, Stainless Steel 904L Hex Bar, Stainless Steel 904L Bar, SS UNS N08904 Round Bar, SS 1.4539 Rods, ASTM B649 904L SS Square Bar, Stainless Steel 904L Round Bar Supplier, ASTM B649 Stainless Steel 904L Round Bar, SS 904L Round Bar Manufacturer In India

Seatech Piping Products LLP is a reliable Stainless Steel 904L Round Bar Manufacturer in India, which manufactures Stainless Steel 904L Hex Bar to be used in an intense corrosion-resistant environment. All the SS 904L Round Bars are ISO and internationally certified, which guarantees unchanging mechanical integrity and international compliance. We supply the high-quality SS UNS N08904 Round Bar that is manufactured using controlled Cold and Hot Roll Process to achieve a high finish, strength, and dimensional accuracy.

Stainless Steel N08904 Round Bar, Stainless Steel 1.4539 Round Bar, Steel 904L Round Bar Stockist, ASME SB649 SS 904L Round Bar, 904L Stainless Steel Bar & Bar, Stainless Steel 904L Round Bar Manufacturer, UNS N08904 Hex Bar, UNS N08904 Stainless Steel Rounds Bar Supplier In India

Seatech Piping Products LLP is a major Stainless Steel 904L Manufacturer & Supplier in India, which manufactures high-quality ASME SB649 SS 904L Round Bar used in Industries. It is renowned to be very stable thermally and can sustain its strength and toughness up to a temperature of 800 o C (427 o C), which is typical of chemical, marine, and power industries. We supply UNS N08904 Stainless Steel Round Bar, a high-quality alloy austenitic grade, an alloy that is largely pitting and crevice resistant. We are also leading Hastelloy Round Bar Manufacturer in India.

Specification Of Stainless Steel 904L Round Bar

Stainless Steel 904L Round Bars Specification
Standards A276 / A479, SA276 / A479
Dimension Standard EN, DIN, JIS, ASTM, BS, ASME, AISI
Range 3.17 MM TO 350 MM DIA
Size Round Bar Size: 3mm ~ 800mm,
Square Bar Size: 4mm x 4mm ~ 100mm x 100mm,
Flat Bar Size: 2mm ~ 100mm,
Hex Bar Size: 2mm ~ 100mm
Thickness 50 mm to 6000 mm Long
Length 1 To 6 Meters, Custom Cut Length
Finish Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish

Types Of Stainless Steel 904L Round Bar

Get Free Quote

CTA Design

Contact Us For Quotation Now !

Figure

Why Choose Seatech Piping Product LLP For Stainless Steel 904L Square Bar?

On-Time Delivery

Quality Products with Timely Delivery.

Quality Inspection

Advanced Technology For Quality Inspection.

Application Of SS 904L Rectangular Bar

Application Of SS 904L Rectangular Bar

  • Oil & Gas Industries
  • Valve And Pulp Industries
  • Refinary Industries
  • Heat Exchanger Industries
  • Paper & Pulp Industries

Packaging Of Stainless Steel 904L Bright Bar

  • Customized Packaging
  • Wooden Crates or Boxes
  • Bundled Packaging
  • Steel Strapped Bundles
  • Plastic Wrap
  • Shrink Wrap
Packaging
                                            Of
                                           Stainless Steel 904L Bright Bar

Chemical Composition of Stainless Steel 904L Round Bar

Grade C Mn Si P S Cr Mo Ni Cu
SS 904L 0.020 max 2.00 max 1.00 max 0.040 max 0.030 max 19.00 – 23.00 4.00 – 5.00 max 23.00 – 28.00 1.00 – 2.00

Mechanical Properties of Stainless Steel 904L Sqaure Bar

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
7.95 g/cm3 1350 °C (2460 °F) Psi – 71000 , MPa – 490 Psi – 32000 , MPa – 220 35 %

Stainless Steel 904L Round Bar Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS BS KS AFNOR EN
SS 904L 1.4539 N08904 SUS 904L 904S13 STS 317J5L Z2 NCDU 25-20 X1NiCrMoCu25-20-5

Stainless Steel 904L Round Bar Physical Properties

Grade Density Thermal expansion co-efficient Thermal conductivity Elastic modulus Poisson’s ratio
SS 904L 0.282 lb/in³ 5.78 µin/in°F 150 BTU in/hr.ft².°F 29000 ksi 0.27-0.30

Dimension Of Stainless Steel 904L Round Bar

Diameter or Width (mm) Weight per meter - Square (kg) Weight per meter - Round (kg) Sectional Area - Square (cm²) Sectional Area - Round (cm²) Perimeter - Square (cm) Perimeter - Round (cm)
5.0 0.20 0.15 0.25 0.20 2.0 1.57
5.5 0.24 0.19 0.30 0.24 2.2 1.78
6.0 0.28 0.22 0.36 0.28 2.4 1.88
7.0 0.38 0.30 0.49 0.38 2.8 2.20
8.0 0.50 0.39 0.64 0.50 3.2 2.51
9.0 0.64 0.50 0.81 0.64 3.6 2.83
10 0.73 0.63 1.00 0.79 4.0 3.14
11 0.95 0.75 1.21 0.95 4.4 3.46
12 1.13 0.89 1.44 1.13 4.8 3.77
14 1.54 1.21 1.96 1.54 5.6 4.40
16 2.01 1.58 2.56 2.01 6.4 5.03
18 2.54 2.00 3.24 2.54 7.2 5.65
20 3.14 2.47 4.00 3.14 8.0 6.28
22 3.80 2.98 4.84 3.80 8.8 6.91
25 4.91 3.85 6.25 4.91 10.0 7.85
28 6.15 4.83 7.84 6.16 11.2 8.80
32 8.04 6.31 10.24 8.04 12.8 10.05
36 10.17 7.99 12.96 10.18 14.4 11.31
40 12.56 9.86 16.00 12.57 16.0 12.57
45 15.90 12.49 20.25 15.90 18.0 14.14
50 19.62 15.41 25.00 19.64 20.0 15.71
56 24.62 19.34 31.36 24.63 22.4 17.59
63 31.16 24.47 36.69 31.17 25.2 19.79
71 39.57 31.08 50.41 39.59 28.4 22.31
80 50.24 39.46 64.00 50.27 32.0 25.13
Stock Available For Stainless Steel 904L Round Bar
904L Stainless Steel Round Bar Tolerances Stainless Steel 904L Hex Bar
SS 904L Forged Hex Bars SS 1.4539 Forged Square Bar
SS 1.4539 Round Bar HSN Code UNS N08904 Stainless Steel Bars
Stainless Steel 904L Round Bars 904L Stainless Steel Bright Bar
ASTM A276 Type N08904 SS Round Bar 904L Flat Stainless Steel Bar
Stainless Steel 904L Forged Square Bars 8mm Square Stainless Steel Bar
Stainless Steel 904L Hollow Bars SUS 904L SS Round Bar Sizes
ASTM A276 904L Stainless Steel Bar Stainless Steel 1.4539 Round Rod
Stainless Steel 904L Forged Hex Rod 8mm 904L Stainless Steel Rod
904L Stainless Steel Precision Ground Rod 904L SS Rod Size Chart
N08904 12mm Stainless Steel Rod SS 904L Half-Round Rods
904L SS Forged Hex Bar Steel 904L Round Rod
